Stormwater 101: Detention and Retention Basins

A common conventional method for managing stormwater is a stormwater basin.  Basins are meant to collect stormwater and slowly release it at a controlled rate so that downstream areas are not flooded or eroded.   While effective for flood control, these practices have significant limitations for water quality treatment and for preventing impacts to stream systems.

Detention (dry) basin

Detention (dry) basin

The main difference between a detention and a retention basin is whether or not it has a permanent pool of water – like a traditional “pond”.   The water level is established by the low flow orifice.  Most of the time the orifice is part of a metal or concrete structure called a riser.  A detention, or dry, basin has an orifice level with the bottom of the basin so that all of the water eventually drains out and it remains dry between storms – hence, a dry basin.  Retention basins have a riser with an orifice at a higher point so that it retains a permanent pool of water.

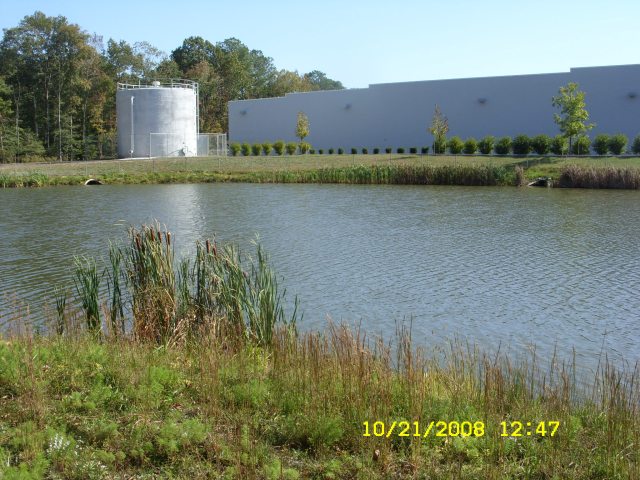

Retention (wet) basin

Retention (wet) basin

The basins themselves are important for storing and slowing (attenuating) the runoff from impervious surfaces such as rooftops or pavement.  The amount of treatment, or cleaning, of the water is limited.  Dry detention basins control flood flows only.  A retention basin can also provide water quality benefits by reducing sediments and attached pollutants.

One of the most important elements of maintaining basins is making sure the low flow orifice is not blocked or clogged.  Other maintenance activities include repairing erosion, removing sediment, and managing the vegetation.  Repairing erosion early can save significant costs, both in the erosion and the resulting sedimentation that can end up needing to be removed from the basin.

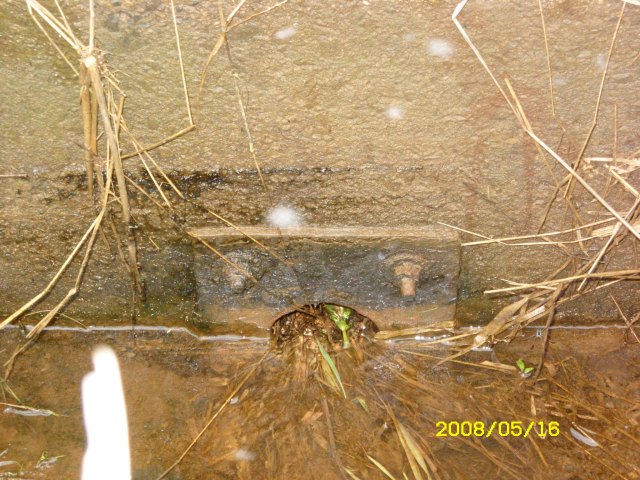

Clogged low flow orifice

Clogged low flow orifice

Vegetation should be kept to heights that allow inspection for animal burrows, sinkholes, wet areas, etc. along the fill embankments.  Common mistakes are not mowing important areas because they are too steep or ignoring mowing completely.

These basins are one of the most popular means of providing stormwater management throughout most of the United States.

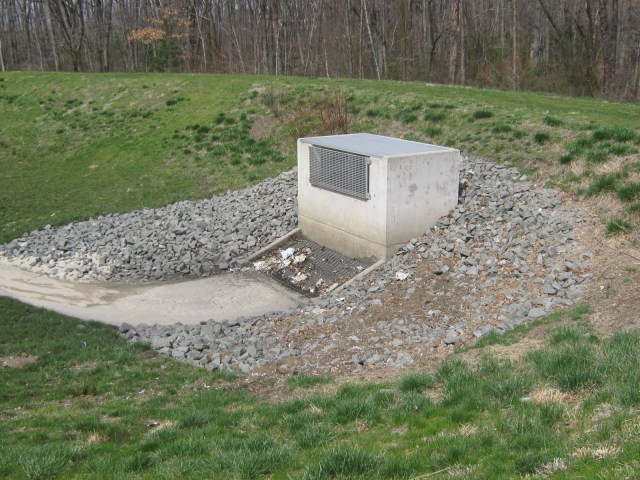

Riser in detention basin

Riser in detention basin

Concrete riser with horizontal dewatering device

Concrete riser with horizontal dewatering device

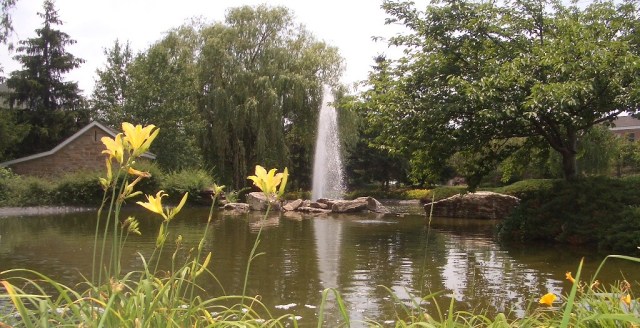

Retention (wet) basin made into an attractive landscape feature

Retention (wet) basin made into an attractive landscape feature
